Paraffin Embedding Cold Plate
Paraffin Embedding Cold Plate

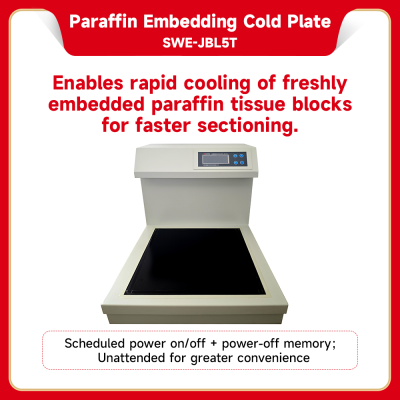

Enables rapid cooling of freshly embedded paraffin tissue blocks for faster sectioning. When paired with the Servicebio Paraffin Embedding Station (SWE-JBL5), it achieves time-saving, high-throughput, and high-quality embedding
Product Introduction
Servicebio Paraffin Embedding Cooling Station enables rapid cooling of freshly embedded paraffin tissue blocks for faster sectioning.Programmable operation with timer and memory functions for unattended operation
Power-off protection ensures experimental continuity

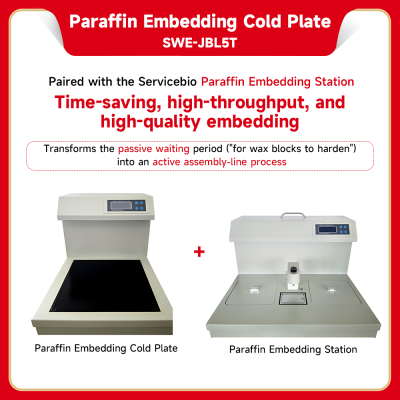

When paired with the Servicebio Paraffin Embedding Station (SWE-JBL5), it creates an efficient workflow that saves time and delivers high-throughput, high-quality embedding
Transforms the passive waiting period ("for wax blocks to harden") into an active assembly-line process
Input Voltage | AC 220V/50Hz; Operating current 0.62A, Starting current 2.3A |
Maximum Power | 120AV |
Operating Temperature Range | 15°C ~ 30°C |
Operating Relative Humidity | 80% |
Cold Plate Plate Size | 325 Ã 285 mm |
Cold Plate Plate Temperature Detection | -18°C (at ambient temperature 30°C, achieved in 12 hours) |
Dimensions | 400 Ã 585 Ã 350 mm |
Weight | Approx. 22 kg |
Display | LCD dot-matrix dynamic display |
Setting Functions | Programmable daily on/off timer (24-hour cycle).Customizable working days (weekly schedule). |
Temperature Setting | Setting range: 0°C ~ 40°C Display range: -40°C ~ 99°C |
Compressor Operation Mode | Requires a 5-minute delay after each shutdown before restarting. |
Retains settings | Memory Function |
