Paraffin Embedding Station
SKU : SWE-JBL5
āļāļēāļĒāđāļĨāđāļ§ 0 āļāļīāđāļ
āļāļģāļāļ§āļ
Paraffin Embedding Station
Used for paraffin embedding of dehydrated biological tissues; when paired with the Servicebio Paraffin Embedding Cold Plate (SWE-JBL5T), it enables time-saving, high-throughput, and high-quality embedding procedures
Servicebio Paraffin Embedding Station features full-temperature-zone control, ensuring uniform heating across the wax reservoir, holding tank, worktable, and forceps standno clogging or wax adhesion.
With two dispensing modes (foot pedal or proximity sensor), both hands remain free to position specimens, minimizing spills and contamination.
Programmable operation includes timed start/shutdown and memory functions, while power-off protection safeguards experimental continuity. Its one-piece molded shell and isolated workspace/control panel prevent wax leakage into circuits, reducing downtime.

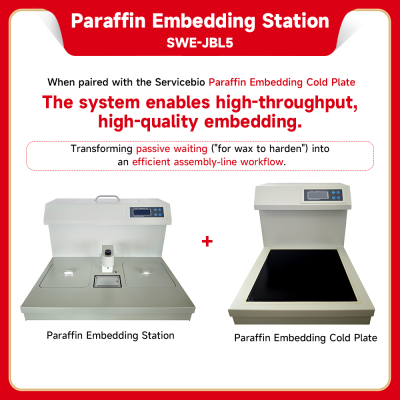

When paired with the SWE-JBL5T Paraffin Embedding Cold Plate, the system enables high-throughput, high-quality embedding, transforming passive waiting ("for wax to harden") into an efficient assembly-line workflow.
Technical Parameters | ||
Wax Melting Tank Temperature Range | 099°C (Accuracy: ¹1°C) | |
Insulation Tank Temperature Range | 099°C (Accuracy: ¹1°C) | |
Worktable Temperature Range | 099°C (Accuracy: ¹1°C) | |
Forceps Holder Temperature Range | 099°C (Accuracy: ¹1°C) | |
Wax Tube Default Temperature | 68°C | |
Wax Tank Capacity | 5000 mL | |
Wax Discharge Mode | Proximity switch control or foot pedal control | |
Timer Settings | Can be set for automatic power on/off within a week | |
Cooling Table Temperature Range | 0 to -40°C | |
Compressor Operation Mode | After each on/off cycle, wait 10 minutes before the next operation. | |
Power Supply | AC220V Âą10% | |
Power Supply Frequency | 50Hz |
