Slide Dryer
Slide Dryer

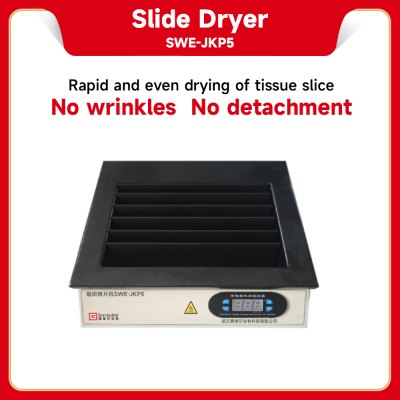

Ensures fast and uniform drying of tissue sections, resulting in wrinkle-free slides that prevent tissue detachment.
Product Introduction

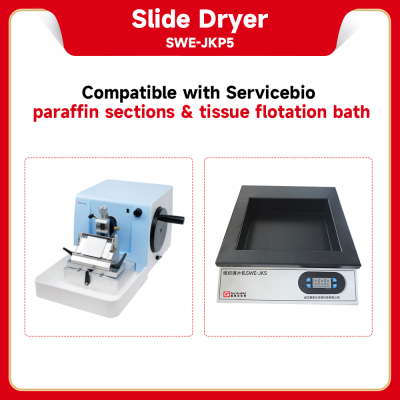

The Servicebio SWE-JKP5 Paraffin Tissue Slide Dryer enables rapid and uniform drying of tissue sections, resulting in wrinkle-free slides with no tissue loss. It features precise temperature control to protect tissue integrity and is ready-to-use for enhanced experimental efficiency. It is ideally paired with the Servicebio Paraffin Microtome (PM-24) and the Servicebio Tissue Flotation Bath(SWE-JK5).

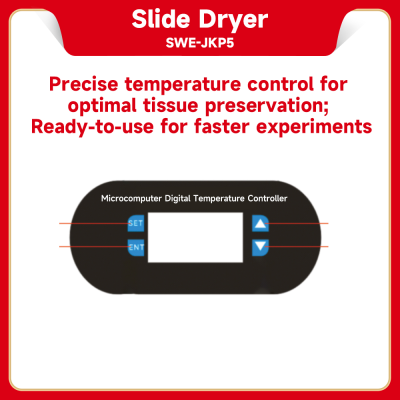

Panel Diagram
Technical Parameters
Parameter | Specification |
Temperature Control Range | Adjustable, 0~120°C |
Temperature Control Accuracy | ¹1°C |
Display Resolution | 0.1°C |
Temperature Hysteresis | Adjustable, 0.1~30°C |
Temperature Calibration | +10~-10°C |
Start Delay | 0~10 minutes |
High-Temperature Alarm | 0~120°C |
Data Lock | Yes |
Data Save | Yes |
Restore Factory Settings | Yes |
Slide Slot Rows | 6 rows |
Slide Capacity | 9 slides/row, 54 slides total |
Slide Orientation | Reversible (top/bottom) |
Power Rating | 300W |
Supply Voltage | 10A / AC 200V |
Operating Ambient Temperature | -20°C ~ 70°C |
Dimensions | 300 x 350 x 105 mm |
Dual Function | Spreading / Drying |
